WEGN57816B
WEGN57816B
| Category | Switch & Receptacle |
|---|---|
| Series | INITIO |
| Color |
|
|---|

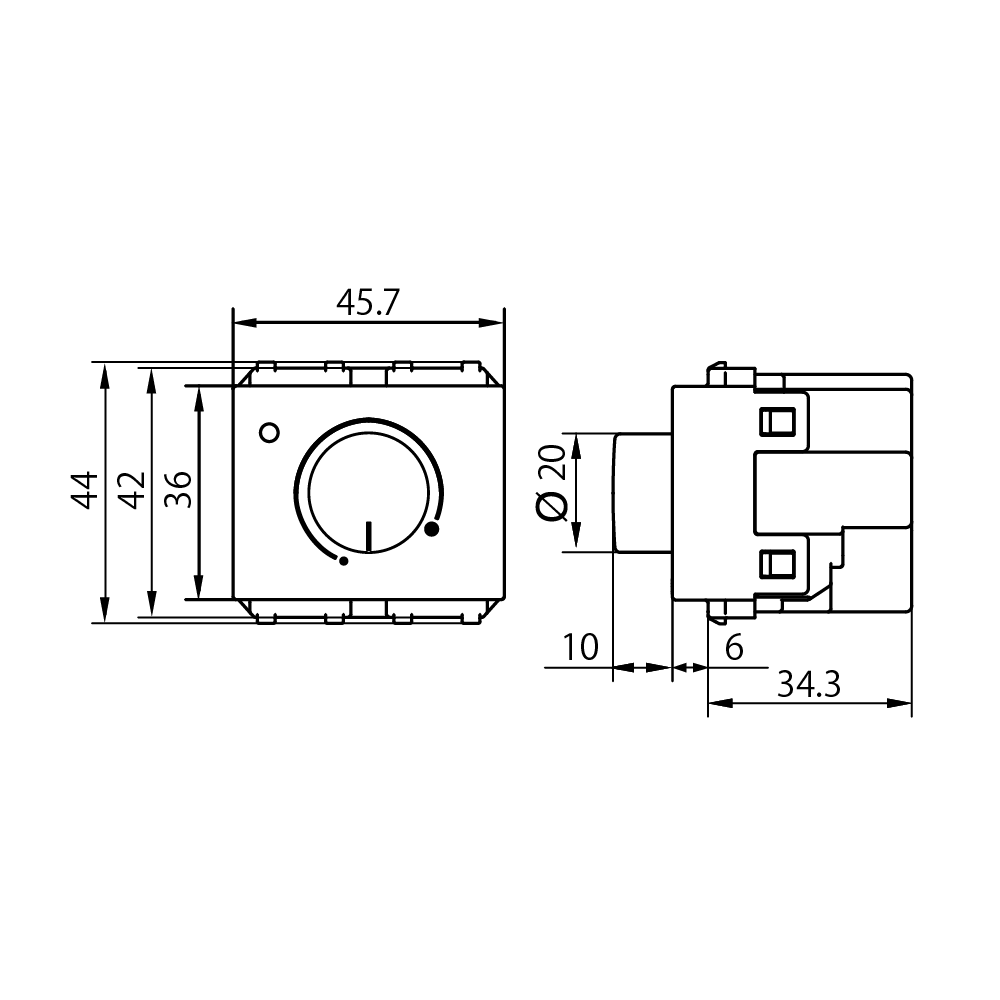

Dimension
Specifications
| Brand | Panasonic |
|---|---|
| Product class1 | Switches & Plates |
| Product class2 select | Switch Dimmer switch Others Switch Plate Others |
| Product class2 | Dimmer switch |
| Color | Black |
| Rated Voltage(V) | 220 |
| Rated Power(W) | 500 |
| Dimension L(mm) | 45.7 |
| Dimension H(mm) | 44 |
| Dimension D(mm) | 50.3 |
| Ambient temperature(℃) | 0℃~+35℃ |
| Number of port/outlet | 1 |
| Terminal | Screw Terminal |
| Quantity per Inner Box | 1 |
| Quantity per Outer Box | 20 |
Downloads
|
|
