WEGN6802CH
WEGN6802CH
| Category | Switch & Receptacle |
|---|---|
| Series | INITIO |
| Color |
|
|---|

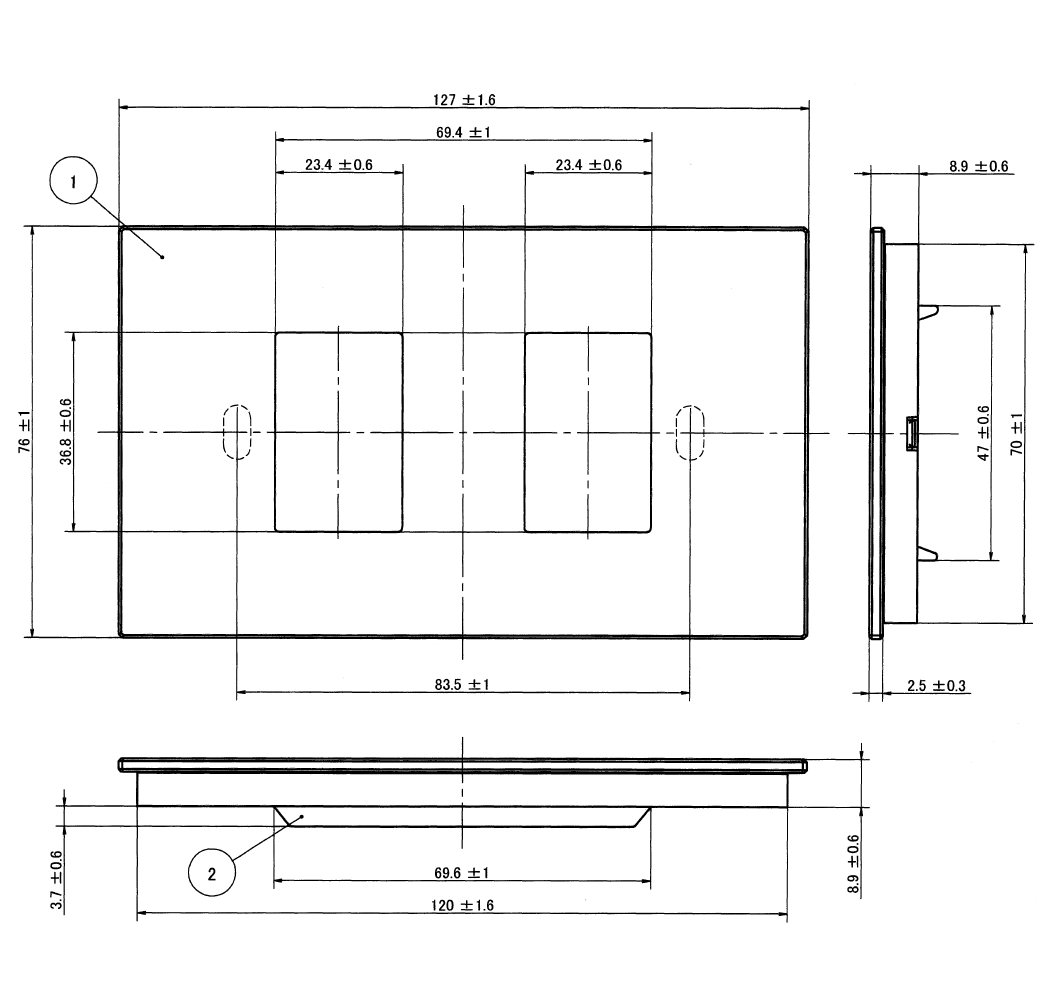

Dimension
Specifications
| Brand | Panasonic |
|---|---|
| Product class1 | Switches & Plates |
| Product class2 select | Switch Dimmer switch Others Switch Plate Others |
| Product class2 | Plate |
| Color | Clear Gray |
| Dimension L(mm) | 76 |
| Dimension H(mm) | 127.0 |
| Dimension D(mm) | 9 |
| Ambient temperature(℃) | -10℃~+40℃ |
| Applicable plate | A-Type |
| Number of port/outlet | 2 |
| Quantity per Inner Box | 5 |
| Quantity per Outer Box | 50 |
