WEGN5571B
WEGN5571B
| Category | Switch & Receptacle |
|---|---|
| Series | INITIO |
| Type | "B" Single Pole |
| Color |
|
|---|

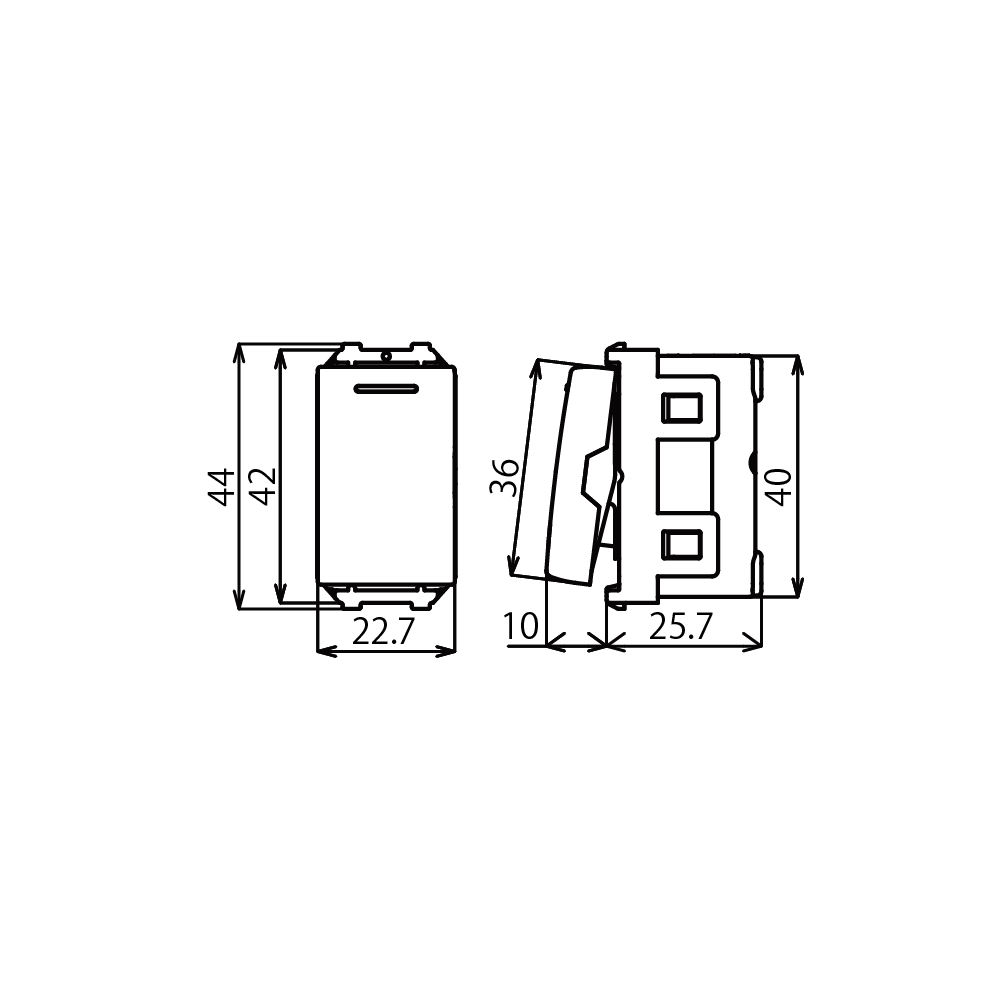

Dimension
Method of Wiring
Specifications
| Brand | Panasonic |
|---|---|
| Product class1 | Switches & Plates |
| Product class2 select | Switch Dimmer switch Others Switch Plate Others |
| Product class2 | Switch |
| Color | Black |
| Rated Current(A) | 16AX |
| Rated Voltage(V) | 250 |
| Dimension L(mm) | 44 |
| Dimension H(mm) | 22.7 |
| Dimension D(mm) | 35.7 |
| Ambient temperature(℃) | -10℃~+40℃ |
| Applicable plate | A/BS Type Compatible |
| Number of port/outlet | 1 |
| Terminal | Quick Connect Terminal |
| Quantity per Inner Box | 10 |
| Quantity per Outer Box | 100 |
