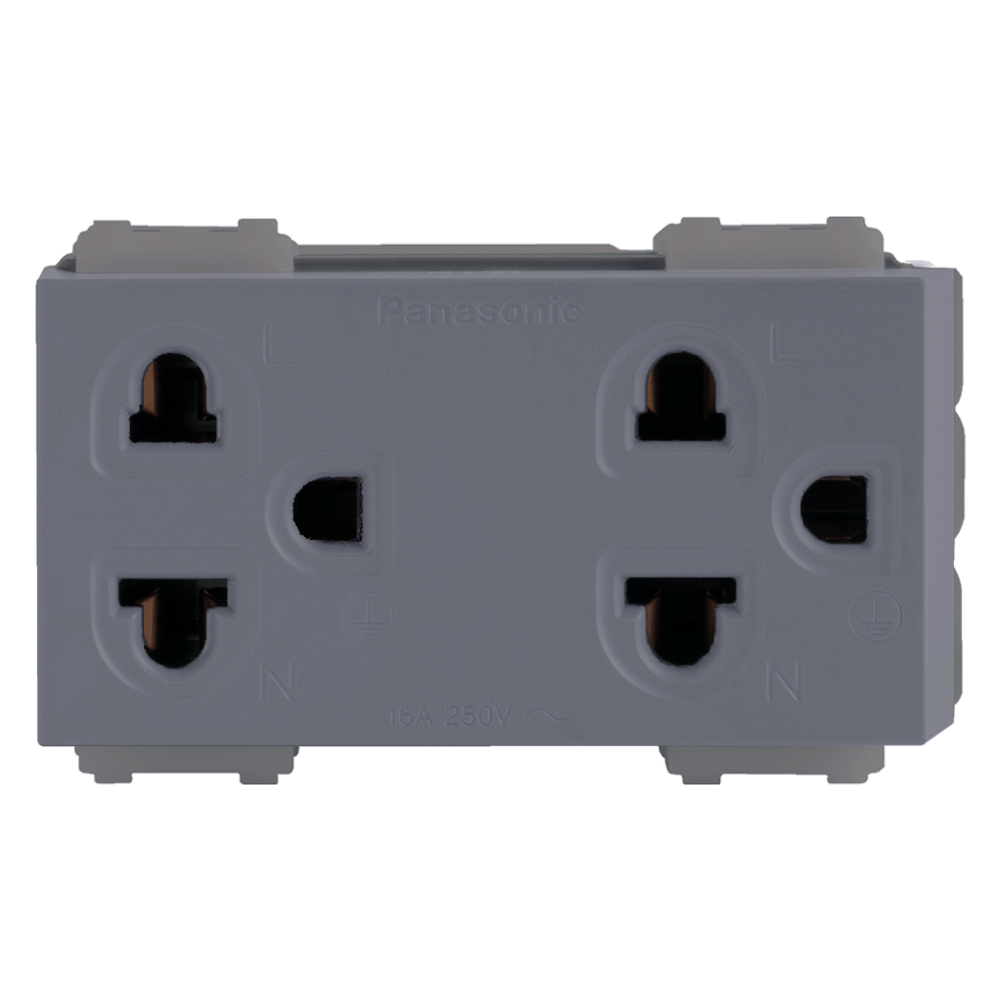

WEGN15929B
WEGN15929B
| Category | Switch & Receptacle |
|---|---|
| Series | INITIO |
| Color |
|
|---|
Dimension
Specifications
| Brand | Panasonic |
|---|---|
| Product class1 | Outlets |
| Product class2 select | Outlet/Socket/Receptacle USB Charger Communication sockets Floor Outlet Extension cord Others |
| Product class2 | Outlet/Socket/Receptacle |
| Color | Black |
| Rated Current(A) | 16 |
| Rated Voltage(V) | 250 |
| Dimension L(mm) | 44 |
| Dimension H(mm) | 68.7 |
| Dimension D(mm) | 30.7 |
| Ambient temperature(℃) | -10℃~40℃ |
| Applicable plate | A/BS Type Compatible |
| Number of port/outlet | 2 |
| Terminal | Quick Connect Terminal |
| Quantity per Inner Box | 10 |
| Quantity per Outer Box | 100 |
| Standard 01 | TIS |
| Certification number 01 | ท5822-12_166 |
