WEFN1182B-TH
WEFN1182B-TH
| Category | Switch & Receptacle |
|---|---|
| Series | INITIO |
| Color |
|
|---|

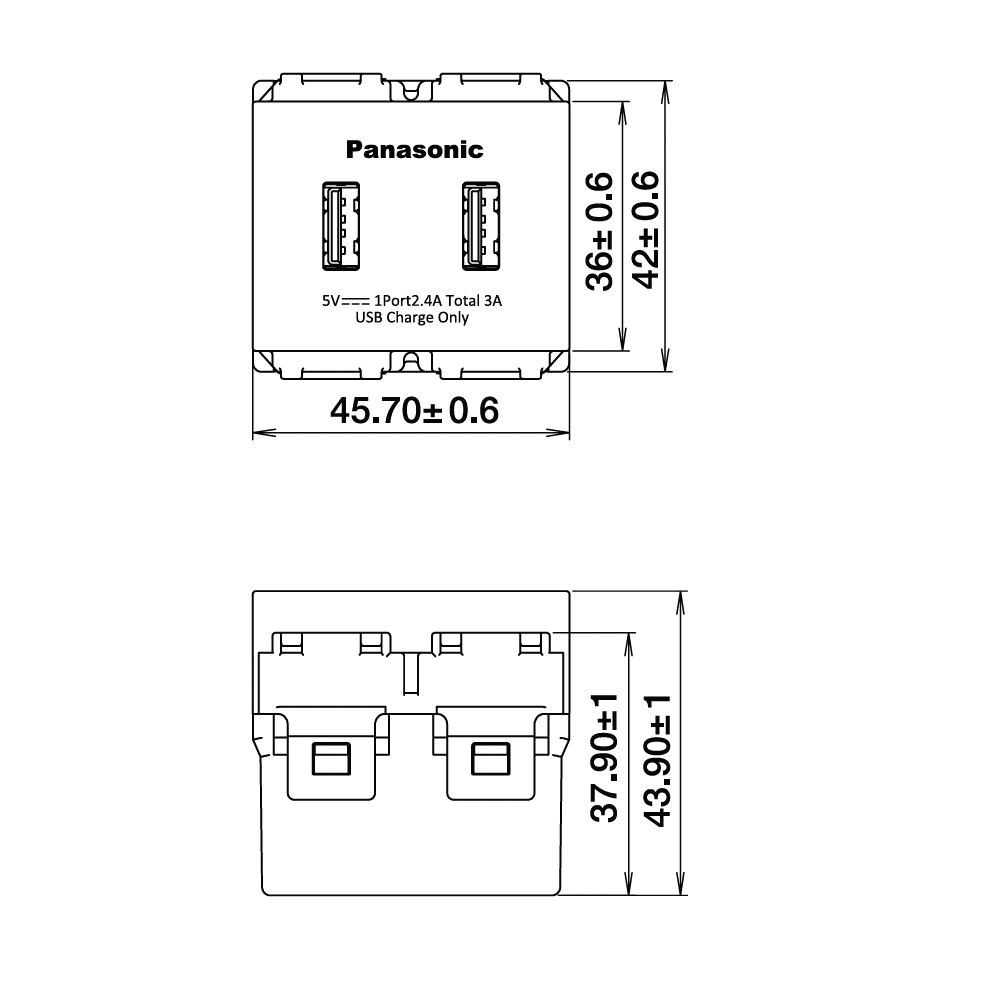

Dimension
Specifications
| Brand | Panasonic |
|---|---|
| Product class1 | Outlets |
| Product class2 select | Outlet/Socket/Receptacle USB Charger Communication sockets Floor Outlet Extension cord Others |
| Product class2 | USB Charger |
| Color | Black |
| Rated Current(A) | 3 |
| Rated Voltage(V) | 5 |
| Dimension L(mm) | 44 |
| Dimension H(mm) | 45.7 |
| Dimension D(mm) | 43.9 |
| Product weight(g) | 70 |
| Ambient temperature(℃) | -10～40 |
| Outlet socket shape | TYPE-A |
| Applicable plug | TYPE-A |
| Applicable plate | A/BS Type Compatible |
| Number of port/outlet | 2 |
| Terminal | Quick Connect Terminal |
| Quantity per Inner Box | 5 |
| Quantity per Outer Box | 50 |
| Product release date | 20/11/2020 |
