EGG335
EGG335
| Category | Switch & Receptacle |
|---|---|
| Series | Full-Color Wide Refina Neo line |
| Type | "B" Single Pole |
| Color |
|
|---|

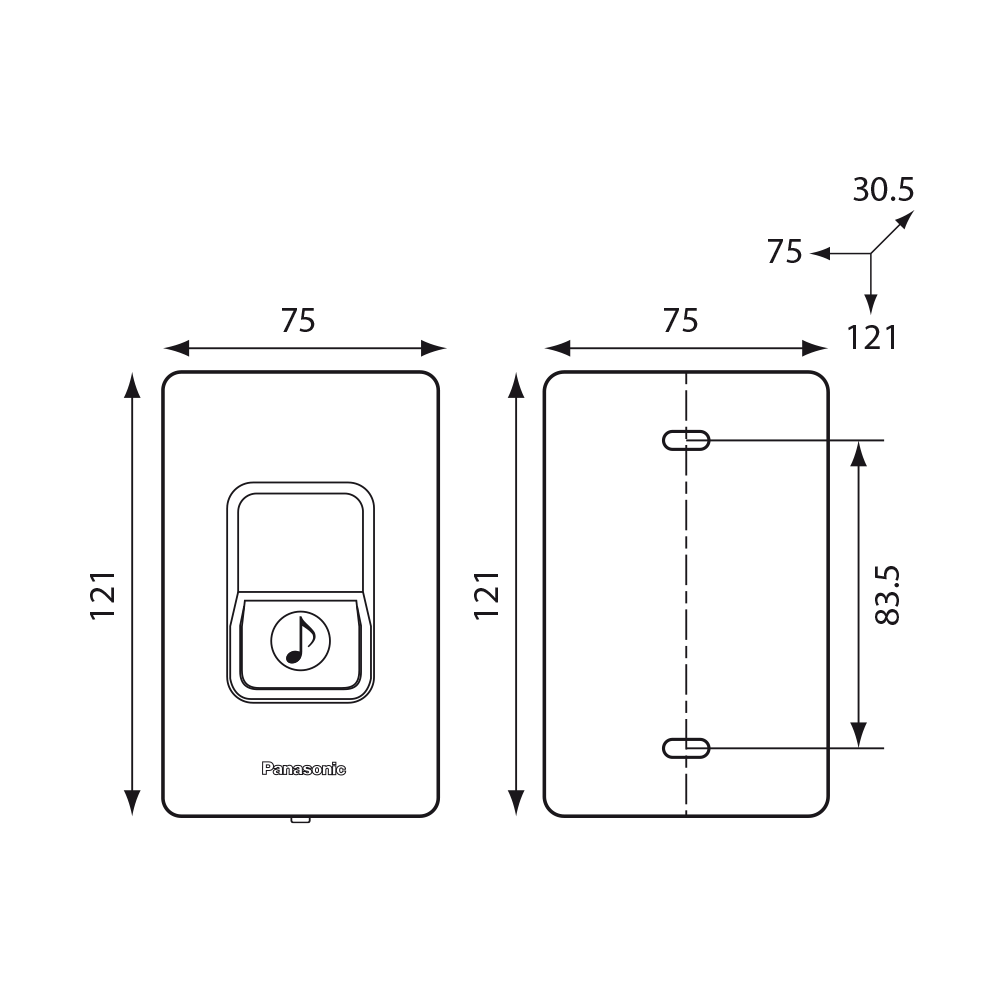

Dimension
Specifications
| Brand | Panasonic |
|---|---|
| Product class1 | Switches & Plates |
| Product class2 select | Switch Dimmer switch Others Switch Plate Others |
| Product class2 | Switch |
| Color | Black |
| Rated Current(A) | 1 |
| Rated Voltage(V) | 250 |
| Dimension L(mm) | 75 |
| Dimension H(mm) | 121 |
| Dimension D(mm) | 30.5 |
| Water-proof/Dust-proof(IP) | IP44 |
| Ambient temperature(℃) | -10℃~+50℃ |
| Applicable plug | 25481 |
| Terminal | Screw Terminal |
| Quantity per Inner Box | 5 |
| Quantity per Outer Box | 20 |
