WTEGP55582S-1
WTEGP55582S-1
| Category | Switch & Receptacle |
|---|---|
| Series | Alufila |
| Type | "C" 3Way |
| Color |
|
|---|
Dimension

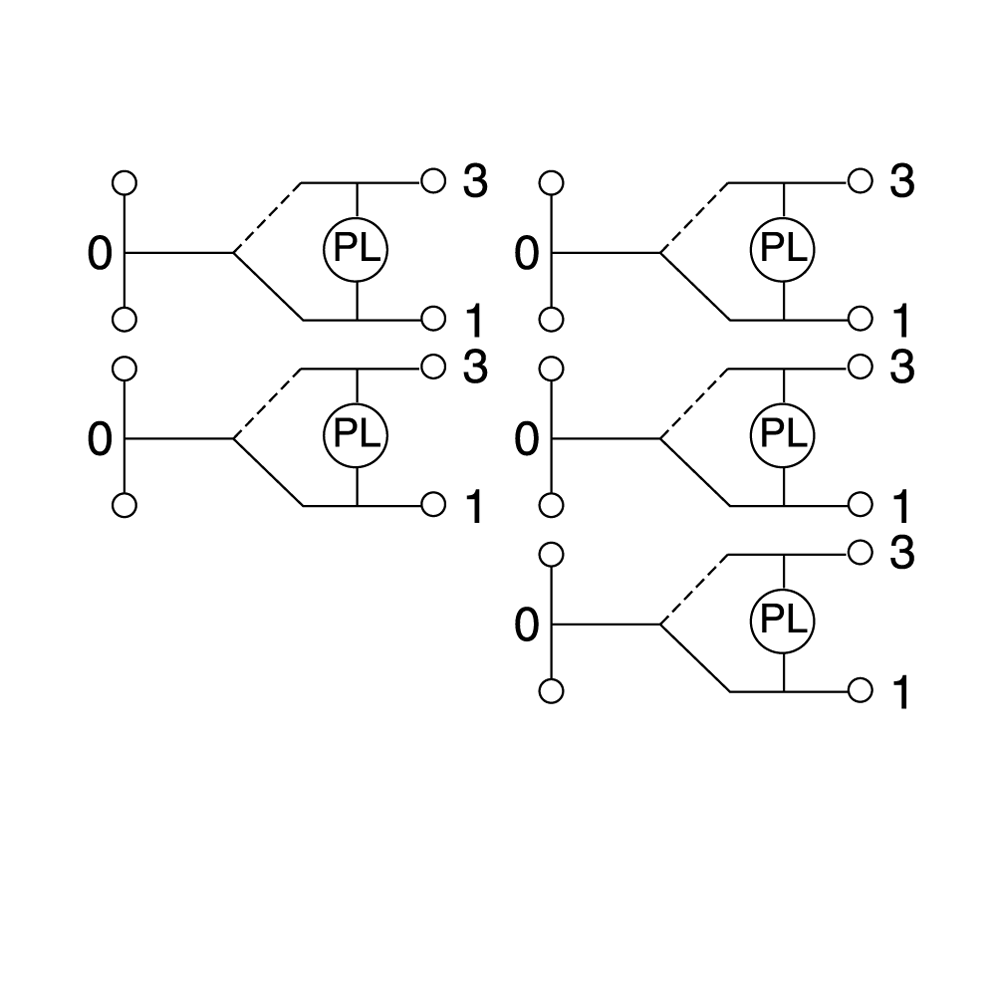

Method of Wiring
Specifications
| Brand | Panasonic |
|---|---|
| Product class1 | Switches & Plates |
| Product class2 select | Switch Dimmer switch Others Switch Plate Others |
| Product class2 | Switch |
| Color | Silver |
| Rated Current(A) | 16AX |
| Rated Voltage(V) | 250 |
| Dimension L(mm) | 126 |
| Dimension H(mm) | 125.0 |
| Dimension D(mm) | 32.3 |
| Ambient temperature(℃) | -10℃~+40℃ |
| Applicable plate | A-Type |
| Number of port/outlet | 5 |
| Terminal | Quick Connect Terminal |
| Quantity per Inner Box | 1 |
| Quantity per Outer Box | 10 |
