BS1111YT
BS1111YT
| Category | Safety breaker |
|---|
| Color |
|---|

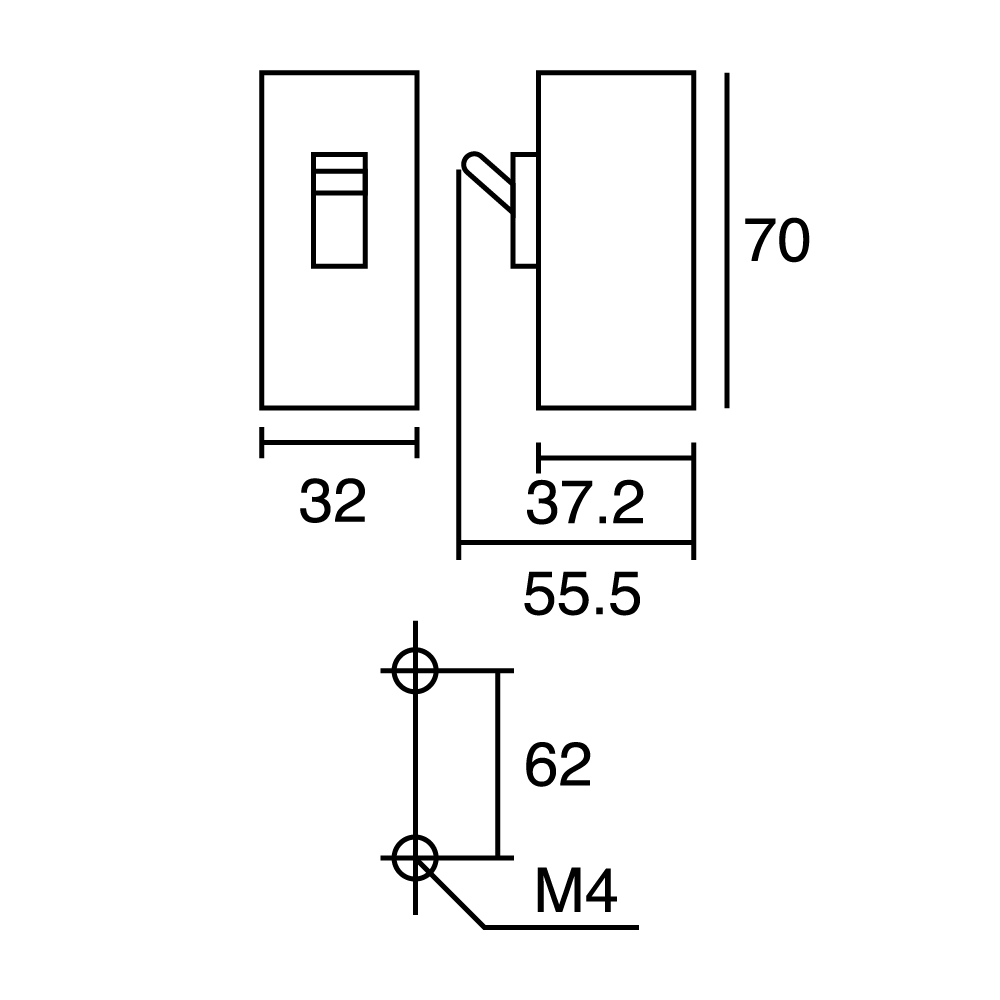

Dimension
Specifications
| Brand | Panasonic |
|---|---|
| Product class1 | MCB・MCCB・RCCB・RCBO・SPD・Contactor |
| Product class2 select | MCB MCCB RCCB RCBO SPD DIN CONTACTOR ISOLATOR CHANGE OVER SWITCH HB ELB Others |
| Product class2 | Others |
| Sub Category | Switchgears |
| Rated Short-Time Withstand Current(kA) | 1.5 |
| Tripping mechanism | Thermal type |
| Mass(g) | 75 |
| Installation specification | Screw mount |
| Terminal cover | Available |
| Terminal specification | Screw |
| Residual current(mA) | 240 |
| Protection Method | Thermal |
| ICU(kA) | 1.5 |
| ICS(kA) | 1.5 |
| Nominal A.C. voltage(V) | 240 |
| Note |
Solderless terminals (with srap) φ1.6-φ2.6 5.5-8mm² |
