WTKF339207-TH
WTKF339207-TH
| Category | Passive Infrared Sensor |
|---|
| Color |
|
|---|

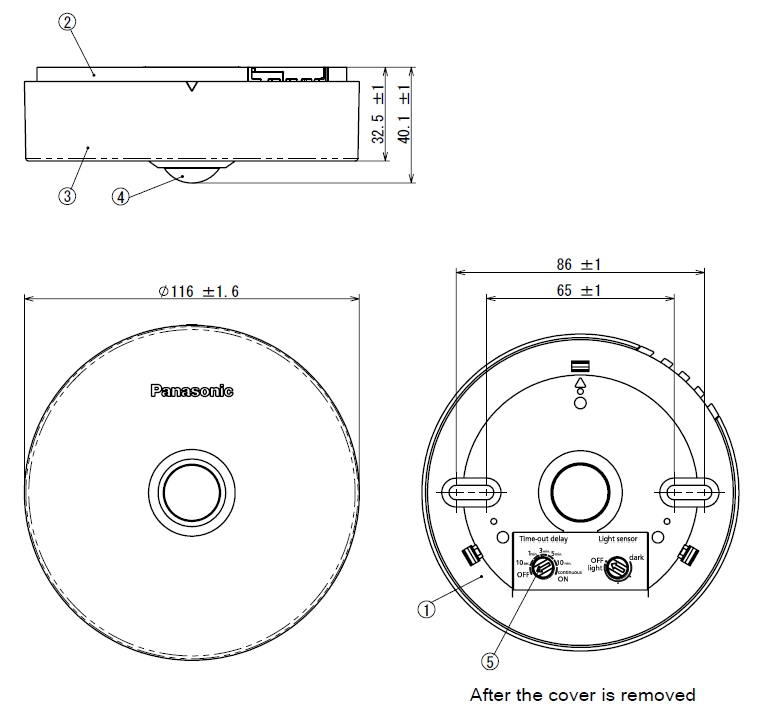

Dimension
Specifications
| Brand | Panasonic |
|---|---|
| Product class1 | PIR Sensor |
| Color | White |
| Rated Current(A) | 10 |
| Rated Voltage(V) | 220~240 |
| Dimension L(mm) | 116 |
| Dimension H(mm) | 116 |
| Dimension D(mm) | 40.1 |
| Product weight(g) | 161 |
| Ambient temperature(℃) | -10℃~+40℃ |
| Applicable devices | In LED Lamp/incandescent lamp |
| Continuous operation time | 10sec-10min |
| Wiring method | 3-wire |
| Applicable wire | 1.5-2.5mm2 Rigid Copper Wire only |
| Size of installation hole(cm) | 1.6 |
| Ambient temperature | 4℃ หรือมากกว่านั้น |
| Light intensity detection | not applicable |
| Applicable box | not applicable |
| Time-Out Delay | 10sec. to 10min. |
| Detectable Movement Speed(m/s) | 0.3 - 1.0 เมตร/วินาที |
| Quantity per Outer Box | 20 |
| Product release date | 08/01/2024 |
