WTKF2911-TH
WTKF2911-TH
| Category | Passive Infrared Sensor |
|---|
| Color |
|
|---|

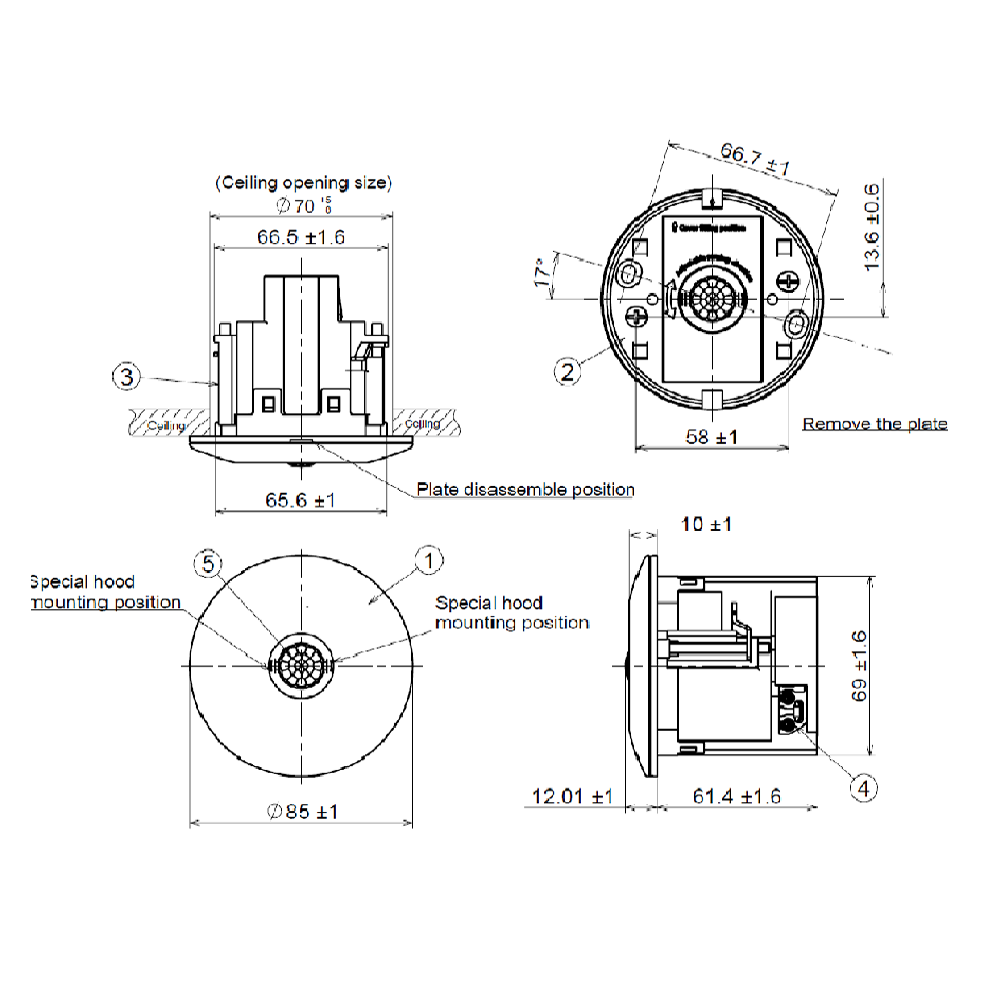

Dimension
Specifications
| Brand | Panasonic |
|---|---|
| Product class1 | PIR Sensor |
| Color | White |
| Rated Current(A) | not appicable |
| Rated Voltage(V) | 12VDC |
| Dimension L(mm) | 85 |
| Dimension H(mm) | 85 |
| Dimension D(mm) | 70.8 |
| Product weight(g) | 180 |
| Ambient temperature(℃) | -10℃~+40℃ |
| Applicable devices | In LED Lamp/incandescent lamp |
| Wiring method | 3-wire |
| Applicable wire | 1.5-2.5mm2 Rigid Copper Wire only |
| Size of installation hole(cm) | 7 |
| Light intensity detection | 5lux - 1000lux |
| Applicable box | not applicable |
| Time-Out Delay | not applicable |
| Detectable Movement Speed(m/s) | 0.3 - 1.0 เมตร/วินาที |
| Quantity per Outer Box | 20 |
| Product release date | 26/08/2021 |
